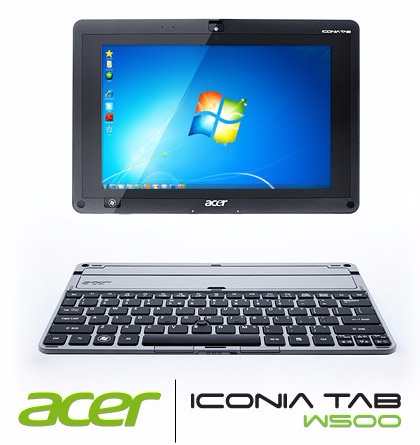

Acer ICONIA Tab W500 Service Manual

Acer ICONIA Tab W500 Service Manual

Before using this information and the product it supports, read the following general information. This Acer ICONIA Tab W500 Service Manual guide gives you all the technical information related to the basic configuration of the global supply of Acer products. To better adapt to the requirements of the local market and improve the competitiveness of products, it is possible that its regional office has decided to extend the functionality of a machine (such as add-in cards, modems or additional memory capabilities). These localized features not covered in this generic service guide. In these cases, please contact your regional office or staff / Channel Manager to provide more technical details. When ordering parts of the FRU: check the most up-to-date information available on its website or regional channel. If for some reason you make a part number change, might it not be considered in this printed Guide. Authorized service providers from Acer: Acer Office can have a number code part other than that shown in the list of RUF in this service guide. You must use the list provided by your regional office of Acer to ask FRU parts for repair and service of the client machines.

A program of hardware configuration in the BIOS of a computer (Basic Input / Output System). Pre-configured and optimized so that users do not need to run this utility. If configuration issues occur, users may need to run the Setup program. See Chapter 4, troubleshooting when the problem arises. To activate the BIOS utility, press F2 during POST when prompted at the bottom of the screen. WT1 Setup function is classified in 4 menus described in the following sections. The values of the parameters can be changed if they are enclosed in brackets []. Navigation arrows appear at the bottom of the screen. Carefully read the help of the parameter when you make changes in the values of the parameters. The help of parameters is in the area the display item-specific help. The system information is subject to specific models.

DOS Flash Utility; Do the following to use the DOS Flash utility: System shutdown then keep pressing snap button always. Press the power button. Press F2 during startup, then it enters the Setup menu. Write the main tab, enabled "F12 Boot Menu", then save and exit. During the reboot, press the snap button, then press F12 when you see the logo, select USB HDD Boot, enter two. Please use [flashit.exe] to update the BIOS, the command is as follows: flash.exe XXXX. XX [BIOS Bin File Name] / all note: press Quick Button when it starts, to close the BIOS quick start function. Then you can select F2 to enter setup menu or press F12 and select boot device. Keep on AC power, to prevent sudden blackouts during an update. Make sure that the correct version of the BIOS, can support this platform.

Removal and replacement of the machine. This chapter contains step-by-step procedures about how to disassemble your laptop for maintenance and troubleshooting. The trajectories of the cable and positioning may not represent the actual model. During the removal and installation of the components, make sure that all available cable channels are used and that the cables should be replaced in the same position. Screws for different components vary in size. During the removal process, grouping the screws with corresponding components to avoid mismatch when replacing components. Previews of the product appearing in removal proceedings may not represent the color or the final configuration of the product.

Download Acer ICONIA Tab W500 Service Manual
